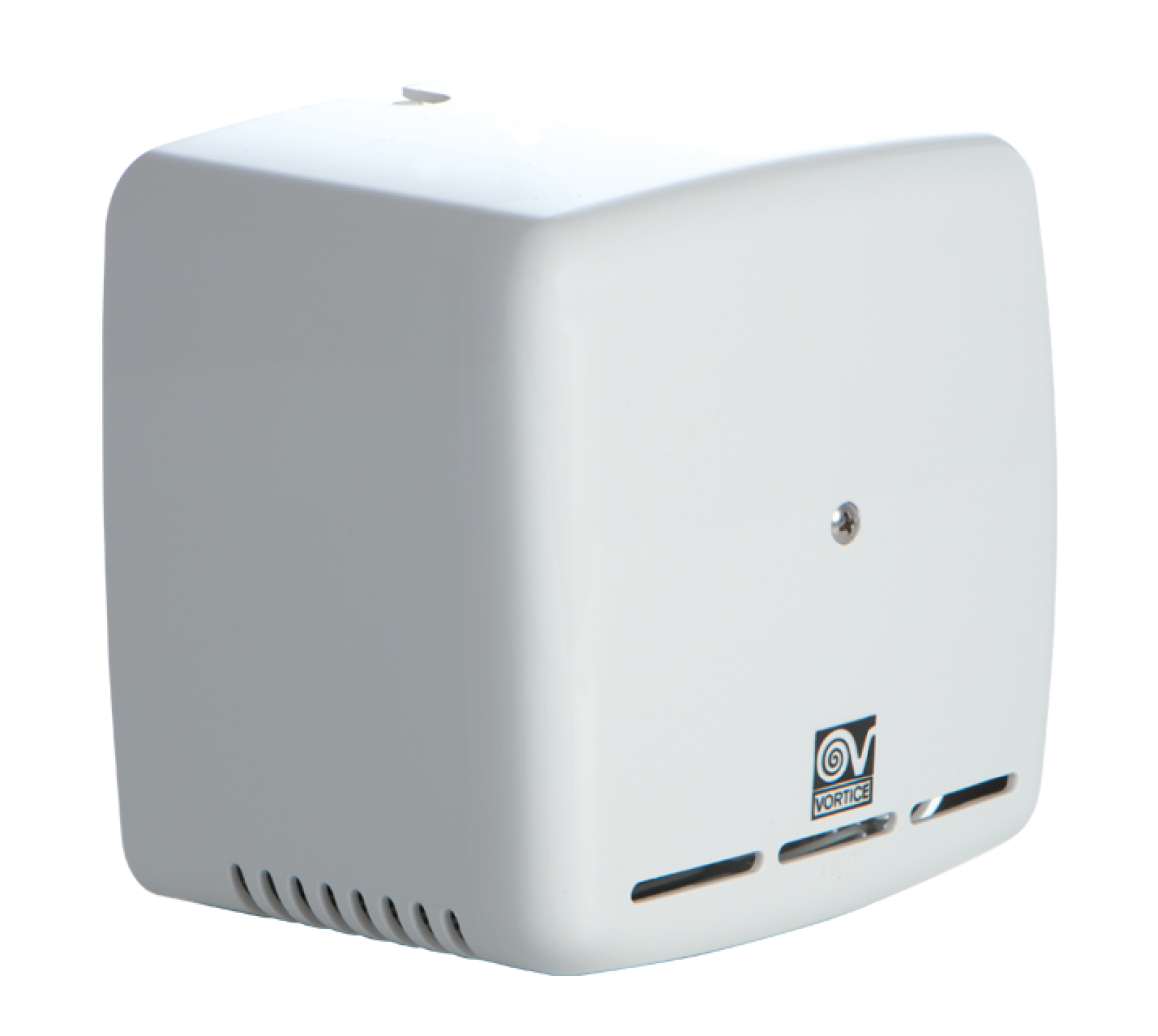

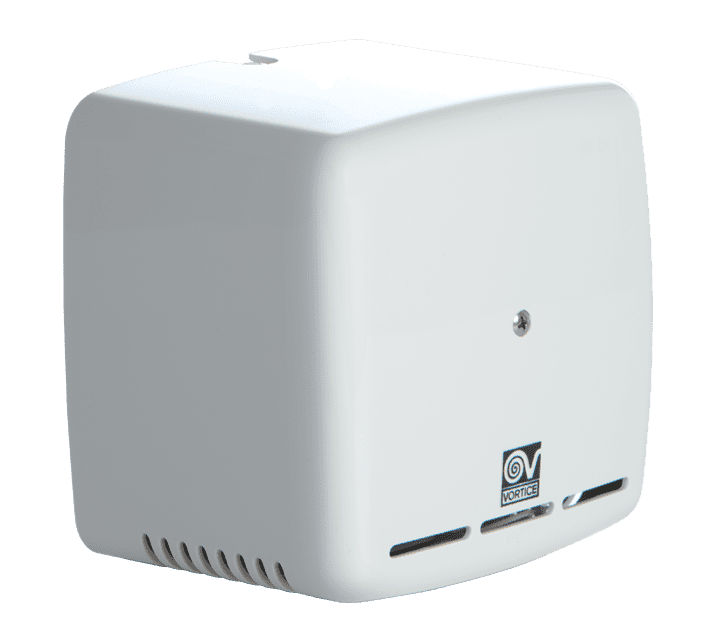

CENTRIFUGAL DUCT FAN ARIETT LL T

features

Main features

  • Material: UV resistant plastic (prevents ageing caused by exposure to sunlight)

  • Nominal diameter: 100 mm

  • Motor with thermal overload protection and shaft turning in ball bearings

  • Maximum air flow 70 m3/h

  • Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’)

Technical Data Sheet

  • Absorbed Current max: 0,14 A

  • Absorbed Power max: 18 W

  • Weight: 1,47 Kg

  • Voltage: 230 V

  • RPM: 2315

  • Frequency: 50 Hz

  • Max ambient temperature for continuous operation: 40º

Energy Data

  • Specific Energy Consumption class SEC average: -5,5 kWh/m2a

  • Specific Energy Consumption class SEC cold: -18,9 kWh/m2a

  • Specific Energy Consumption class SEC warm: 2,1 kWh/m2a

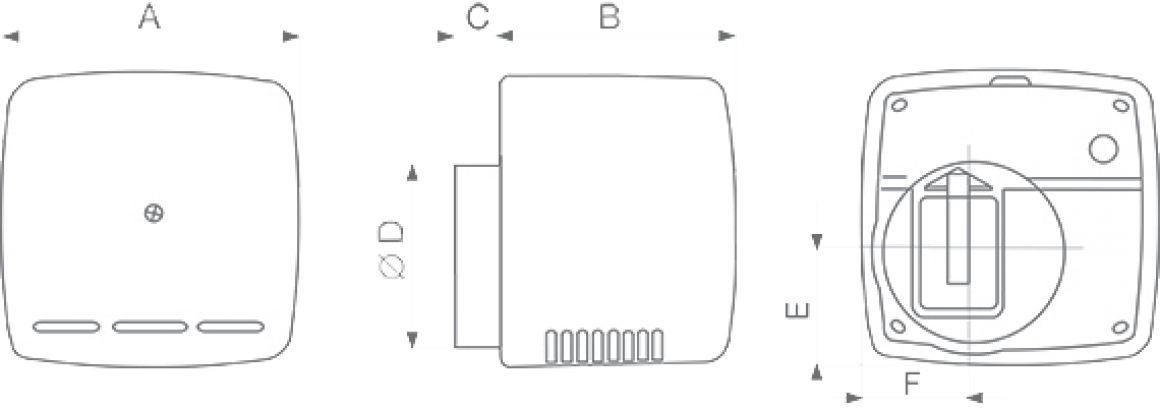

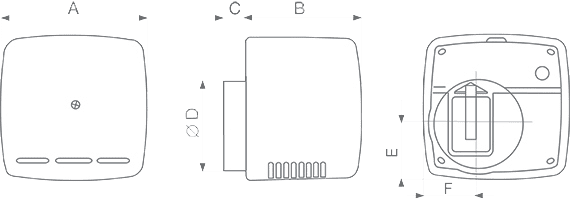

Dimensions

  • Size A: 156 mm

  • Size B: 123 mm

  • Size C: 25 mm

  • Size D: Ø 97 mm

  • Size E: 60 mm

  • Size F: 60 mm
